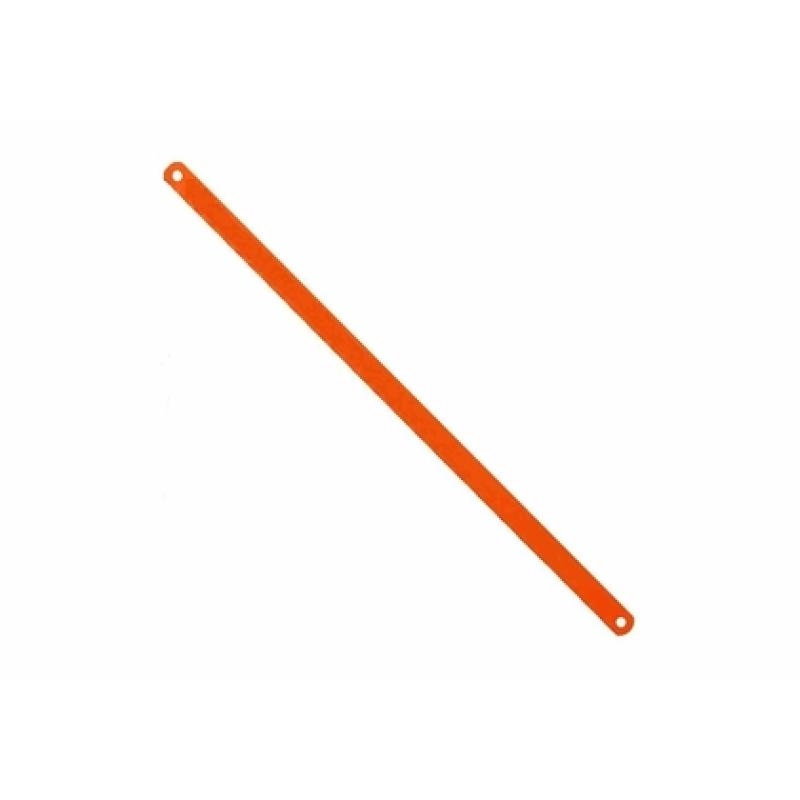

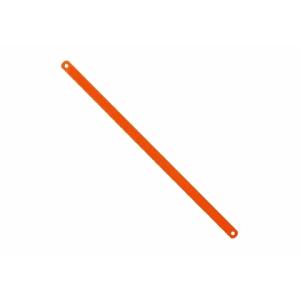

Saw Blades Or Hacksaw Blades Hand hacksaw Single side Flexible centre blade (type C)
Standards
Conforming to Indian Standard IS 2594 : latest
BIS Marking No
CML Number (If BIS Marked other wise say NA) na
PERFORMANCE PARAMETERS
Type of Hacksaw Blade Flexible centre blade (type C)
Type of hacksaw for which blade is suitable Hand hacksaw
Teeth availability Single side
DIMENSIONAL PARAMETERS
Nominal Length of blades (mm) 300
Width of blades (mm) 12.5
Thickness of blades (mm) 0.63
Pitch (mm) 1.4
Number of Teeth per 25 mm Length (Nos) 24
MATERIAL PARAMETERS
Material High-speed steel shall be according to Designation XT87W6M05Cr4V2 of IS 7291
Workmanship and Finish Low alloy flexible
Hardness Near to the tip of the tooth minimum of 760 HV 800
Hardness around the pin holes shall be 270 to 500 HV 480
Certifications
Availability of test certificate form Government/NABL/ILAC accredited lab to prove conformity of specifications Yes
Copy of test reports shall be furnished to buyer on demand Yes
