Standards

Conforming to Indian Standard IS 2594 : latest

BIS Marking No

CML Number (If BIS Marked other wise say NA) NA

PERFORMANCE PARAMETERS

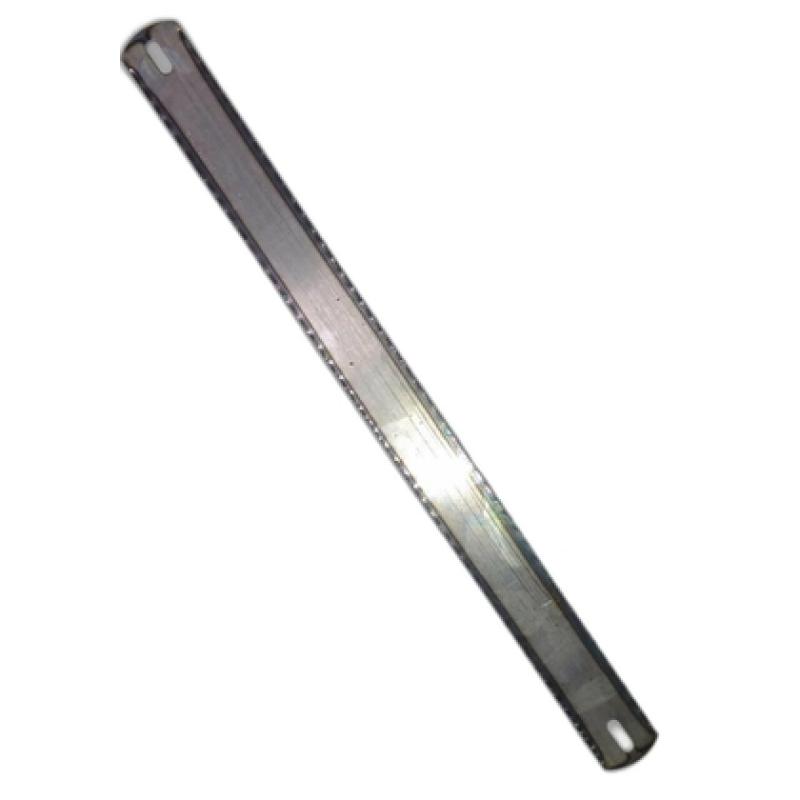

Type of Hacksaw Blade All hard blade (type A)

Type of hacksaw for which blade is suitable Hand hacksaw

Teeth availability Both side

DIMENSIONAL PARAMETERS

Nominal Length of blades (mm) 300

Width of blades (mm) 25

Thickness of blades (mm) 1.25

Pitch (mm) 1

Number of Teeth per 25 mm Length (Nos) 32

MATERIAL PARAMETERS

Material Carbon Steel

Workmanship and Finish Blades shall be free from burrs, rust, scale, other defects and freedom from distortion requirements

Hardness Near to the tip of the tooth minimum of 760 HV 900.25

Hardness around the pin holes shall be 270 to 500 HV 423.5

Certifications

Availability of test certificate form Government/NABL/ILAC accredited lab to prove conformity of specifications Yes

Copy of test reports shall be furnished to buyer on demand Yes
